Straddle legs that extend under the pallet. An adjustable outrigger span from 210 to 800 mm. 1,200 kg at lift heights up to 3,500 mm. CE certified — up to 48% below what the brand catalogs charge for the same machine.

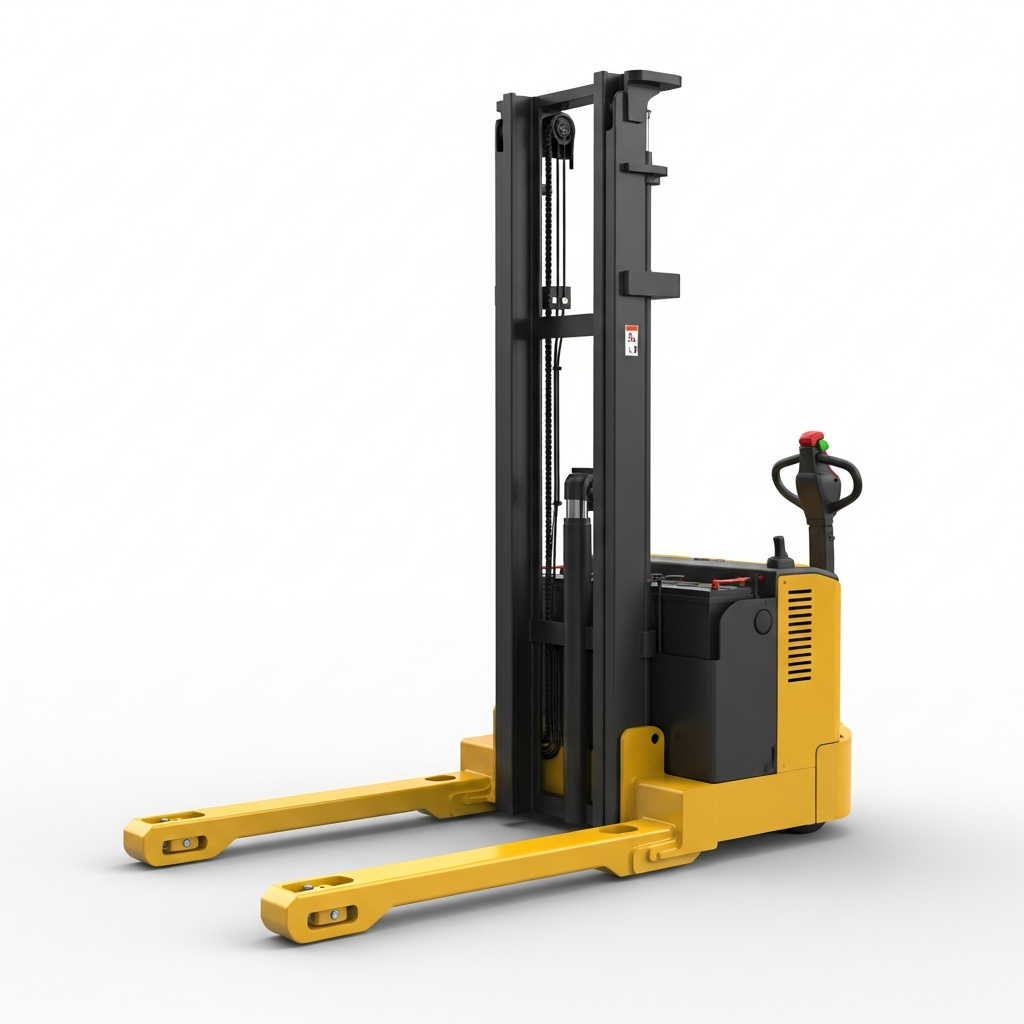

3/4 view
CE · STRADDLE LEGS · 24V/75Ah
A standard walkie stacker lifts from underneath — it needs a pallet with bottom entry clearance or a racking system with open bases. A straddle stacker's outrigger legs extend forward and straddle the pallet on the floor, letting the forks reach down between the legs to ground level. This changes what you can handle: floor-stacked pallets, flat skids, sheet goods, anything that doesn't have fork-entry clearance built in.
The JL-SRS carries 1,200 kg with straddle legs adjustable from 210 to 800 mm — wide enough to straddle a standard 800 mm Euro pallet entered on its narrow side, narrow enough to work in a standard aisle. Six lift heights: 1,600 / 2,000 / 2,500 / 3,000 / 3,300 / 3,500 mm. Drive and lift are both electric: 0.75 kW drive motor, 2.2 kW lift motor, same 24V/75Ah battery with built-in charger as the JL-EST.
The JL-SRS straddle leg design means the forks can extend between the legs to a lowered height of 75 mm — low enough to get under a standard block pallet or flat skid sitting on a concrete floor. The straddle leg width is fixed at order; the 210–800 mm range covers most standard European and North American pallet widths. If you need powered leg adjustment, ask at quote time.
Loaded travel speed is 2.5 km/h; unloaded is 3.0 km/h — identical to the JL-EST. The wider straddle leg footprint provides a wider stability base at height than a narrow outrigger design, which matters when you're raising 1,200 kg above 2,500 mm on a busy floor.
No ambiguity — every dimension and rating is on the page.
| Specification | JL-SRS 16 | JL-SRS 30 |
|---|---|---|
| Max lift height | 1,600 mm | 3,000 mm |
| Net weight (approx) | 500 kg | 610 kg |
| Shared across JL-SRS 16 / 30 | ||
| Rated capacity | 1,200 kg | |
| Load centre | 600 mm | |
| Lowered fork height (straddle) | 75 mm | |
| Fork length | 1,070 mm (straddle type) | |
| Straddle leg width (overall) | 210–800 mm adjustable | |
| Overall length | 1,745–1,750 mm | |
| Overall width | 820 mm | |
| Wheelbase | 1,275 mm | |
| Min turning radius | 1,465–1,470 mm | |
| Ground clearance | 30 mm | |
| Drive wheel | Ø210 mm — PU | |
| Load roller | Ø80 mm — PU | |
| Balance wheel | Ø124 mm | |
| Travel speed (loaded/unloaded) | 2.5 / 3.0 km/h | |
| Lift speed (loaded/unloaded) | 100 / 112 mm/s | |
| Lower speed (loaded/unloaded) | 92 / 85 mm/s | |
| Drive motor | 0.75 kW | |
| Lift motor | 2.2 kW | |
| Battery | 24V / 75Ah — with built-in charger (110V compatible) | |
| Certification | CE | |
| Available lift heights | 1,600 · 2,000 · 2,500 · 3,000 · 3,300 · 3,500 mm | |
| Origin | Manufactured in Jiangsu, China · QC'd & shipped from Toronto, Ontario | |
Straddle leg width (210–800 mm) covers standard Euro and North American pallet widths. Additional lift heights (2,000 / 2,500 / 3,300 / 3,500 mm) available on request. All specs verified against factory data sheet.
The straddle leg design changes the operational envelope. Here's what it unlocks.
The straddle forks lower to 75 mm — low enough to slide under a standard block pallet sitting directly on a concrete floor. No racking, no floor clearance requirement, no dock needed.
The outrigger leg span adjusts from 210 to 800 mm — sized for standard Euro and North American pallets entered on the narrow dimension, and narrow enough to clear standard aisle widths.
The extended straddle legs create a wider stability footprint than a narrow-outrigger walkie stacker. At 3,000 mm of lift height with 1,200 kg on the forks, that base width is not an incidental dimension.
Both motors are electric: 0.75 kW drive, 2.2 kW lift. No pushing the load, no pumping the mast. The tiller handle controls travel speed and direction; the thumb lever controls lift and lower.
24V/75Ah battery with built-in charger. Plug into a standard 110V wall outlet at shift end. No charging station, no dedicated circuit, no electrician. Unplug in the morning and go.
1,600 through 3,500 mm — six mast options. The 3,000 mm option reaches standard industrial racking second shelf with a straddle leg base. The 3,500 mm hits third shelf. Specify at order.
Every JL-SRS ships with the documentation a procurement team or safety officer actually asks for, packed in the crate with the unit.
The North American brands charge a premium for the straddle configuration. The leg geometry, the mast and the motors are commodity engineering — the price difference is the distribution chain.
| Model | Brand catalog list | Jesterlift | Savings |
|---|---|---|---|
| JL-SRS 16 — 1,200 kg straddle stacker · 1,600 mm lift | $10,500 | $5,490 | −48% ($5,010) |
| JL-SRS 30 — 1,200 kg straddle stacker · 3,000 mm lift | $13,500 | $6,990 | −48% ($6,510) |
Prices in CAD · CE certified · PU wheels standard · QC pack included · FOB Toronto. Additional lift heights and powered leg adjustment available on request. Brand catalog list = published CAD MSRP from major North American material handling brands at time of writing.
The straddle legs, the mast section and the 24V drivetrain are the same across every walkie straddle stacker in this class. We skip the dealer network and pass the margin to you. The price on this page is the price you pay.
No portal, no sales gate. Send your lift height, straddle width and quantity — we'll come back with a published price, lead time and the QC pack contents, usually within one business day.
