Spring-actuated. 360° turntable. No power, no air, no plumbing. The pallet top stays at working height as the load goes down — ergonomics without a power bill. Three platform variants, 2,000 kg capacity, CE and GS certified.
3/4 view
CE · GS · NO POWER · 360°
The JL-PP is a spring-actuated self-leveling pallet positioner. The idea is simple: as workers remove items from the top of a pallet, the spring underneath automatically raises the platform to keep the remaining load at a comfortable working height. No bending to the floor for the last layer. No power supply. No compressed air. Just a calibrated coil spring and a 1,110 mm diameter turntable that rotates 360° so every worker can face the load square-on, whatever side the aisle is on.
The spring is adjustable — configured from the factory for the expected load range and fine-tunable on-site. The SPP360 platform sits at 240 mm when fully loaded and rises to 705 mm as the load lightens. Fork pockets in the base let you reposition the unit with a standard pallet truck without lifting equipment.

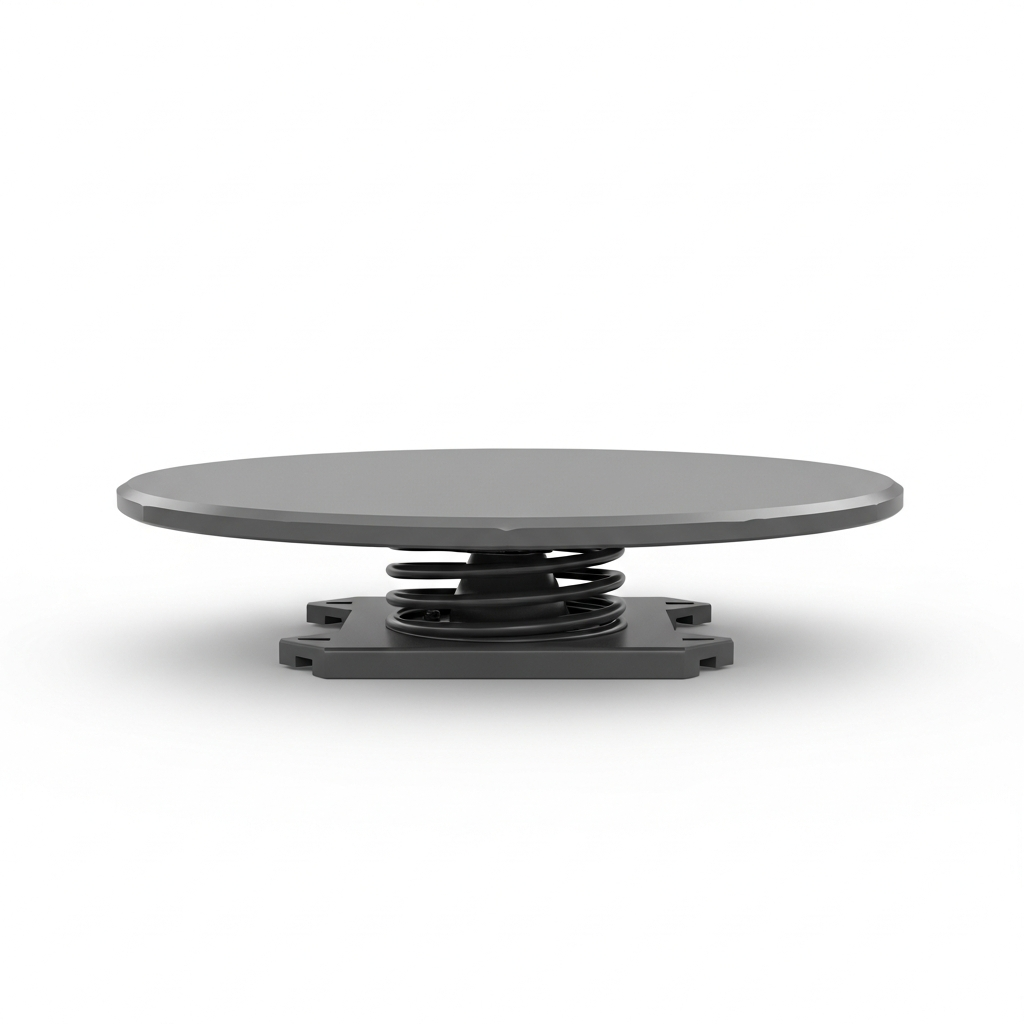

The open-deck (JL-PP Open) uses a steel-ring turntable — lighter, good airflow, easy to hose down. The closed-deck (JL-PP Closed) has a solid steel top that's better for loose or bagged product. The closed-square variant (JL-PP SQ) has the same closed-top but in a square-cornered housing — works where round platforms create aisle clearance issues. All three share the same base, spring system, and 2,000 kg capacity rating.
A hot-galvanized finish is available at order for washdown environments. Specify at quote time — no upcharge for standard galvanizing.
No ambiguity — every dimension and rating is on the page. No "contact us for details."
| Specification | JL-PP Open | JL-PP Closed | JL-PP SQ |
|---|---|---|---|
| Platform style | Open steel ring deck | Closed solid steel deck | Closed solid steel deck (square housing) |
| Shared across JL-PP Open / Closed / SQ | |||
| Rated capacity | 2,000 kg (4,500 lbs) | ||
| Platform diameter | 1,110 mm (43-¾″) | ||
| Min. height (fully loaded) | 240 mm (9-½″) | ||
| Max. height (unloaded) | 705 mm (27-¾″) | ||
| Base footprint | 920 × 930 mm (36″ × 36-¾″) | ||
| Rotation | 360° free-spin turntable | ||
| Spring system | Three coil springs — spring count selectable to suit load weight | ||
| Power required | None — fully passive mechanical operation | ||
| Relocation | Fork pockets at base — standard pallet truck compatible | ||
| Optional finish | Hot-galvanized (SPP360-G) — specify at order | ||
| Certification | CE · GS | ||
| Origin | Manufactured in Jiangsu, China · QC'd & shipped from Toronto, Ontario | ||
Three coil springs standard — remove or add springs to match your typical pallet weight; configured at the factory, adjustable on-site. Hot-galvanized finish available on request at no upcharge. All specs verified against the factory data sheet shipped with the unit.
The ergonomic injury in a pick operation isn't the first layer — it's the last. The positioner solves the bend, not just the first-box height.
No power outlet, no compressed air line, no hydraulic plumbing. The spring does the work. Install it anywhere on the floor; move it with a pallet truck.
Workers rotate the pallet to face them instead of walking around it. Faster picks, less reaching across the load, fewer awkward twists at end-of-range.
The spring system is configurable for your expected load weight at the factory. Fine-tune on-site if your pallet weights vary shift to shift.
Open ring deck for ventilation and easy cleaning. Closed solid deck for loose or bagged product. Square-housing variant for aisles where a round profile wastes space.
Base fork pockets accept a standard pallet truck — you don't need lifting gear to move the positioner to a new station. Repositioning takes seconds.
Specify the galvanized finish at order for washdown environments. Same spring system, same capacity, better corrosion resistance — no upcharge on standard galvanizing.
Every JL-PP ships with the documentation a procurement team or safety officer actually asks for, packed in the crate with the unit.
The spring-actuated pallet positioner isn't a complex machine. A calibrated coil, a turntable bearing, and a steel platform. The branded catalog price reflects a distributor network and a brand badge — not a more sophisticated spring.
| Model | Brand catalog list | Jesterlift | Savings |
|---|---|---|---|
| JL-PP Open — 2,000 kg open-deck turntable positioner | $3,900 | $2,090 | −46% ($1,810) |
| JL-PP Closed — 2,000 kg closed-deck turntable positioner | $3,900 | $2,090 | −46% ($1,810) |
| JL-PP SQ — 2,000 kg closed-square turntable positioner | $3,900 | $2,090 | −46% ($1,810) |
Prices in CAD · CE and GS certified · adjustable spring · 360° turntable · fork-pocket relocatable · QC pack included · FOB Toronto. Brand catalog list = published CAD MSRP from major North American material handling brands at time of writing.
Same coil-spring principle, same turntable bearing, same fork-pocket base. We publish the price because the only thing protecting the branded markup is the quote wall they put in front of it.
No portal, no sales gate. Send your expected load weight range, platform preference, and quantity — we'll come back with a published price, lead time and the QC pack contents, usually within one business day.
