JL-SEP Series · Electric Pallet Trucks

Electric Pallet Truck — JL-SEP Series.

Electric drive and electric lift. 1,500 kg or 2,000 kg, 5.5 kg lithium battery — the compact pedestrian electric that doesn't require a charger cabinet or a dedicated circuit.

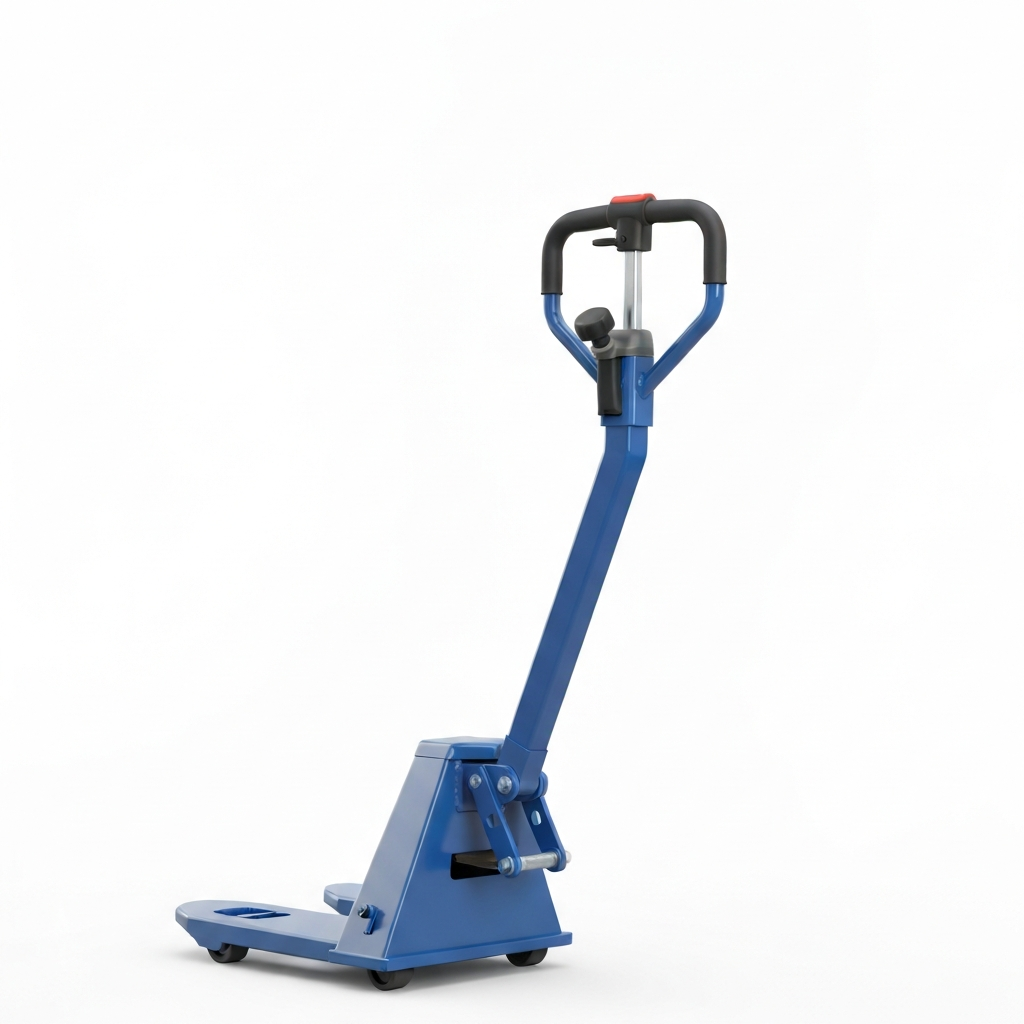

Jesterlift JL-SEP semi-electric pallet truck — three-quarter front view Jesterlift JL-SEP semi-electric pallet truck — tiller handle and throttle control detail 3/4 view CE · LITHIUM · 1.5T–2.0T · ELECTRIC DRIVE + LIFT
Configure your unit

Two capacities. Electric drive and lift. Lithium standard on both.

Brand catalog list $2,990
$1,500
● −50% ($1,490) vs power-assist list
FOB Toronto · in stock · ships in 3–5 business days
Request a quote → Full spec sheet ↓
●CE Certified ●Lithium Battery (5.5 kg) ●Electric Drive + Lift ●4.2–4.5 km/h Travel ●1,380 mm Turn Radius ●150 kg Service Weight
02 · Overview

The compact electric that doesn't need a sparky on site first.

The JL-SEP is a compact pedestrian electric pallet truck: electric drive and electric lift. Press the tiller thumb-wheel to travel, press the lift button to raise the forks to 195 mm. The battery is a 5.5 kg lithium pack — not the 32 kg lead-acid block in a full-size walkie. You don't need a charging station. You don't need a new circuit. The lithium pack charges from a standard wall outlet with the included charger.

Two capacity variants: the EPT15V (1,500 kg) runs a 24V/20Ah pack and a 0.75 kW drive motor, travel speed 4.2 km/h laden. The EPT20V (2,000 kg) runs a 48V/15Ah pack and a 0.90 kW drive motor, travel speed 4.5 km/h laden. Both share a 0.5 kW lifting motor, the same fork geometry — 50 × 160 × 1,150 mm, 85 mm lowered height, 4 front load rollers — and the same 1,380 mm turning radius.

Who it's for

Operations that move pallets short distances in spaces too tight or too sensitive for a heavier full-size walkie — retail backrooms, pharmacy stockrooms, light manufacturing cells, small distribution staging areas. The 5.5 kg lithium pack and 150 kg service weight make this significantly easier to manoeuvre than a lead-acid walkie in tight spaces. If you're covering 200+ metres per trip all day, the full walkie (70 Ah lead-acid) is the better tool. If you're lifting and placing within 30–50 metres, the JL-SEP is lighter, cheaper, and simpler to operate.

03 · Technical specifications

Every number published. Variant rows first.

The 1.5T and 2.0T differ in battery voltage and drive motor power — everything else is shared. No figures invented or estimated.

Specification JL-SEP 15 (EPT15V) JL-SEP 20 (EPT20V)
Rated capacity 1,500 kg 2,000 kg
Battery 24V / 20 Ah — lithium 48V / 15 Ah — lithium
Drive motor 0.75 kW 0.90 kW
Shared across JL-SEP 15 / 20
Overall length 1,620 mm
Outside fork width (S / L) 550 mm (S) / 685 mm (L)
Load center distance 600 mm
Load distance (x) 950 mm
Wheelbase 1,270 mm
Turning radius 1,380 mm
Fork dimensions (h × w × L) 50 × 160 × 1,150 mm
Load roller size Ø80 × 70 mm / Ø80 × 93 mm
Lifting height 195 mm
Min fork height (lowered) 85 mm
Ground clearance 35 mm
Travel speed (laden / unladen) 4.2 / 4.5 km/h
Max gradeability (laden / unladen) 6% / 30%
Lifting motor 0.5 kW
Drive wheel Ø210 × 75 mm — polyurethane
Brake type Electromagnetic
Battery weight 5.5 kg
Service weight (excl. battery) 150 kg
Certification CE
Origin Manufactured in Jiangsu, China · QC'd & shipped from Toronto, Ontario

Fork width S (550 mm) and L (685 mm) available on both variants. Battery is maintenance-free lithium — 5.5 kg vs 32 kg for lead-acid. Specify capacity and fork width at order.

04 · The upgrade that doesn't break the budget

Six features. Six reasons this is the right call for short-haul operations.

The JL-SEP is the lightweight electric option: full electric drive and lift in a 150 kg package with a 5.5 kg lithium battery. Its advantages are specific — and so are its limits.

5.5 kg lithium battery

Not the 32 kg lead-acid block in a full-electric walkie. The lithium pack is light enough to hot-swap by hand, charges from a standard outlet, and doesn't require a dedicated battery room.

Electric drive and lift

Thumb-wheel for travel, button for lift. No pump handle, no pushing — the drive motor moves the load, the lift motor raises the forks. Your operators' shoulders and backs notice by week two.

150 kg service weight

Roughly a third the weight of a full-electric walkie with its battery. Easier to manoeuvre through doorways, onto lifts and into compact staging areas.

1,380 mm turning radius

Tighter than the full walkie (1,460 mm) and significantly tighter than the rider (1,540 mm). The right tool for narrow backroom aisles and retail stockrooms.

Two capacities, one platform

1,500 kg (24V, 0.75 kW drive motor) or 2,000 kg (48V, 0.90 kW drive motor) on the same chassis with the same fork geometry and the same 1,150 mm fork length. Operators switch between models without retraining.

No charging infrastructure required

The lithium pack charges from a standard outlet. No 240V circuit, no charging station, no electrician on site before commissioning. Unbox, charge, operate.

05 · QC pack

Paperwork in the crate. No follow-up tickets.

Every JL-SEP ships with the documentation a procurement team or safety officer actually asks for, packed in the crate with the unit.

  • ✓CE Declaration of ConformitySemi-electric pallet truck — EU Machinery Directive 2006/42/EC
  • ✓Operator's manualLift operation, battery charging, daily inspection, safety limits · printed + PDF
  • ✓Maintenance scheduleBattery charge cycles, wheel inspection, brake check intervals
  • ✓Spare parts listLift motor, battery, load rollers, drive wheel, tiller assembly
  • ✓Pre-shipment QC inspection sheetLift test + load test + brake test signed at QC bench
  • ✓Battery warranty cardSerial number registered · no portal sign-up needed

What you don't need to ask for

CE Conformity Machinery Directive QC Sign-off Spare Parts List Lithium Battery Card Operator Manual
Documentation rides in the crate. If your facility needs the CE paperwork before unboxing, ask at order — we'll PDF it same day.
06 · Price comparison

Same category. Half the price.

Power-assist pallet trucks from Vestil and similar brands typically sell for $2,990–$3,390 CAD. The JL-SEP is $1,500–$1,710. Both have electric lift. One has a distributor network to feed.

Model Brand catalog list Jesterlift Savings
JL-SEP 15 — 1,500 kg semi-electric pallet truck $2,990 $1,500 −50% ($1,490)
JL-SEP 20 — 2,000 kg semi-electric pallet truck $3,390 $1,710 −50% ($1,680)

Prices in CAD · CE certified · lithium battery included · QC pack included · FOB Toronto. Brand catalog list = typical North American power-assist pallet truck street pricing (Vestil PM5 class), estimated at time of writing — no published list price available.

An electric drive-and-lift pallet truck with a 5.5 kg lithium battery shouldn't cost three thousand dollars because a catalogue said so.

Electric drive. Electric lift. Lightweight lithium. CE certified. Ships in 3–5 days. The $1,500 you keep buys something that actually moves your operation forward — not someone else's distribution margin.

Why pay $2,990?
Pay $1,500.

Compare models → Get a quote
Get a quote

Tell us the load. We'll send the price.

No portal, no sales gate. Send your capacity (1.5T or 2.0T), fork width (S or L) and quantity — we'll come back with price, lead time and QC pack contents within one business day.
