Lift, rotate, mix, empty and transport 200-litre drums without a crane. 300 kg rated, hydraulic cylinder with pipe-breakage protection — manual or electric. Nearly half the brand catalog price.

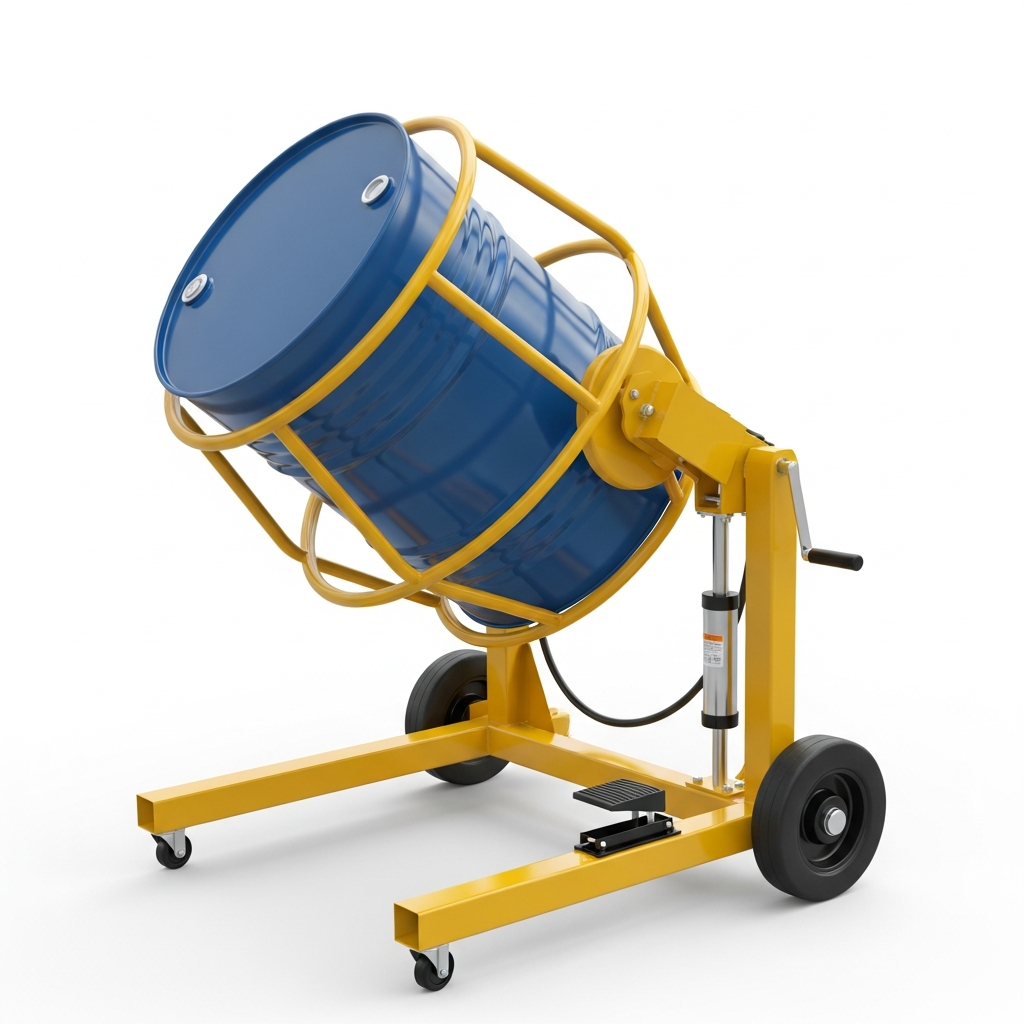

3/4 view
CE · 300 KG · MANUAL & ELECTRIC
The JL-DR is a drum rotator and tumbler designed to do five things with a 200-litre drum that people usually need five pieces of equipment for: lift it, turn it, mix its contents, empty it and transport it to the next station. All on the same chassis, all without a forklift or a ceiling hook.
The WB30 does this manually — a hand crank rotates the drum cradle, a foot pedal triggers the hydraulic lift. The WE30 swaps the hand crank and foot pedal for a 1.5 kW electric motor and a 12V/60Ah battery. The electric lift speed is approximately 40 mm/s. Both variants carry 300 kg — a full 200-litre steel drum with rolling hoops. Both accept steel, plastic and fibre drums from Ø400 to Ø600 mm.
The cylinder includes a pipe-breakage protection valve. If a hydraulic line fails under load, the valve closes and holds the drum at height — it doesn't drop. That's the difference between an incident and a disaster when you're carrying a full drum of anything flammable, corrosive or heavy. Not every drum rotator in this price class has it. This one does.
CE Declaration of Conformity, operator's manual, maintenance schedule, spare parts list, and a pre-shipment QC inspection sheet. Everything in the crate. If you need the CE paperwork before delivery, ask at order — we'll PDF it.
Specs verified against the Nu-Lift WB30 / WE30 factory data sheets. Rows omitted where factory data was not available.
| Specification | JL-DR WB30 (Manual) | JL-DR WE30 (Electric) |
|---|---|---|
| Drive type | Manual hand crank + hydraulic foot pedal | Electric motor — 1.5 kW |
| Battery | — | 12V / 60Ah |
| Lift speed | Manual (stroke-actuated) | ~40 mm/s |
| Strokes to max height | ~82 strokes | — |
| Shared across JL-DR WB30 / WE30 | ||
| Rated capacity | 300 kg | |
| Compatible drum size | Ø572 × 900 mm (standard 200-litre) | |
| Compatible drum diameter range | Ø400–600 mm | |
| Front wheel | Ø200 mm | |
| Rear castor | Ø150 mm · solid rubber · swivel with wheel stop | |
| Hydraulic cylinder | Pipe-breakage protection valve fitted as standard | |
| Frame | Welded steel chassis · powder-coated safety yellow | |
| Compatible drum types | 200-litre steel drums with rolling hoops · plastic · fibre | |
| Certification | CE · EU Machinery Directive 2006/42/EC | |
| Origin | Manufactured in China · QC'd & shipped from Toronto, Ontario | |
All specs verified against factory data sheet. Rows not available from factory data have been omitted.
Drum handling equipment fails when it can't hold the drum securely at height, can't cope with a hydraulic fault, or can't adapt to the drum diameter you actually have on the floor.
The hydraulic cylinder includes a pipe-breakage protection valve. If a line fails, the valve closes and holds the drum at height — it doesn't drop. Standard on every unit, not an optional upgrade.
Lift, turn, mix, empty and transport. You don't need a separate drum mixer, a drum tipper and a drum dolly — the WB30 and WE30 do all five on the same unit.
Ø400–600 mm compatibility covers standard 200-litre drums in steel with rolling hoops, and the plastic and fibre drums that don't have rolling hoops. One unit handles the whole drum inventory.
The WB30 manual crank suits occasional use and environments where a battery isn't practical. The WE30 electric reduces operator fatigue on high-cycle applications. Both share the same 300 kg rated chassis.
The rear castor swivels for maneuverability and locks with a wheel stop when you're positioning the drum. The unit stays where you put it while you work.
Rated at 300 kg — a full 200-litre steel drum with contents. Not a tare-weight rating, not a partial-fill rating. The number on the plate is the number you can put in the drum.
Every JL-DR ships with the documentation a safety officer or procurement team asks for, packed in the crate with the unit.
Branded drum rotators with identical specifications sell through distributor networks at a premium that covers the network, not the engineering. The steel is the same; the margin isn't.
| Model | Brand catalog list | Jesterlift | Savings |
|---|---|---|---|
| JL-DR WB30 — 300 kg manual drum rotator | $1,090 | $579 | −47% ($511) |
| JL-DR WE30 — 300 kg electric drum rotator | $1,890 | $989 | −48% ($901) |
Prices in CAD · CE certified · QC pack included · FOB Toronto. Brand catalog list = published CAD MSRP from major North American material handling distributors at time of writing.
Same hydraulic cylinder. Same pipe-breakage valve. Same powder-coated frame. We publish the price the rest of the industry buries in a quote request — because the quote request only ever existed to protect the margin, not the product.
No portal, no sales gate. Send your drum type, diameter, application frequency and quantity — we'll come back with a published price, lead time and the QC pack contents, usually within one business day.
