The JL-DL is a wheeled hydraulic drum lifter for moving 55-gallon rimmed drums on and off pallets without a forklift. Roll it to the drum, lower the spring-loaded rim clamps over the drum's upper rolling hoop — they engage automatically — then pump the handle to raise the drum 805 mm. That's enough height to clear a standard pallet and place the drum onto low racking. Set it down, roll out, and the clamps release when the weight lifts off.
Two variants: the DT300A standard uses 125 × 32 mm front and rear wheels for stable rolling on warehouse floors. The DT300B low-profile uses compact 64 × 37 mm front and 80 × 32 mm rear castors — a lower overall profile that fits under drums stored in tight low-clearance racking bays where the standard model's wheel height would prevent positioning. Both carry 300 kg and handle the same 572 mm standard 55-gallon drum. The DT300B is 4 kg lighter at 68 kg versus 72 kg for the DT300A.
Pick the right variant
The DT300A is the default — larger wheels give more stable rolling when manoeuvring between storage locations. The DT300B is the right call when your racking bay or drum storage area has a low sill or a tight floor clearance that makes the extra height of the DT300A's wheels a problem. If you're placing drums into low racking or working in a tight floor-level bay, measure the clearance from the drum's base to the lowest obstruction — if it's under 200 mm, specify the DT300B.
What ships with it
CE Declaration of Conformity, operator's manual, maintenance schedule, spare parts list, and a pre-shipment QC inspection sheet. All documentation in the crate.

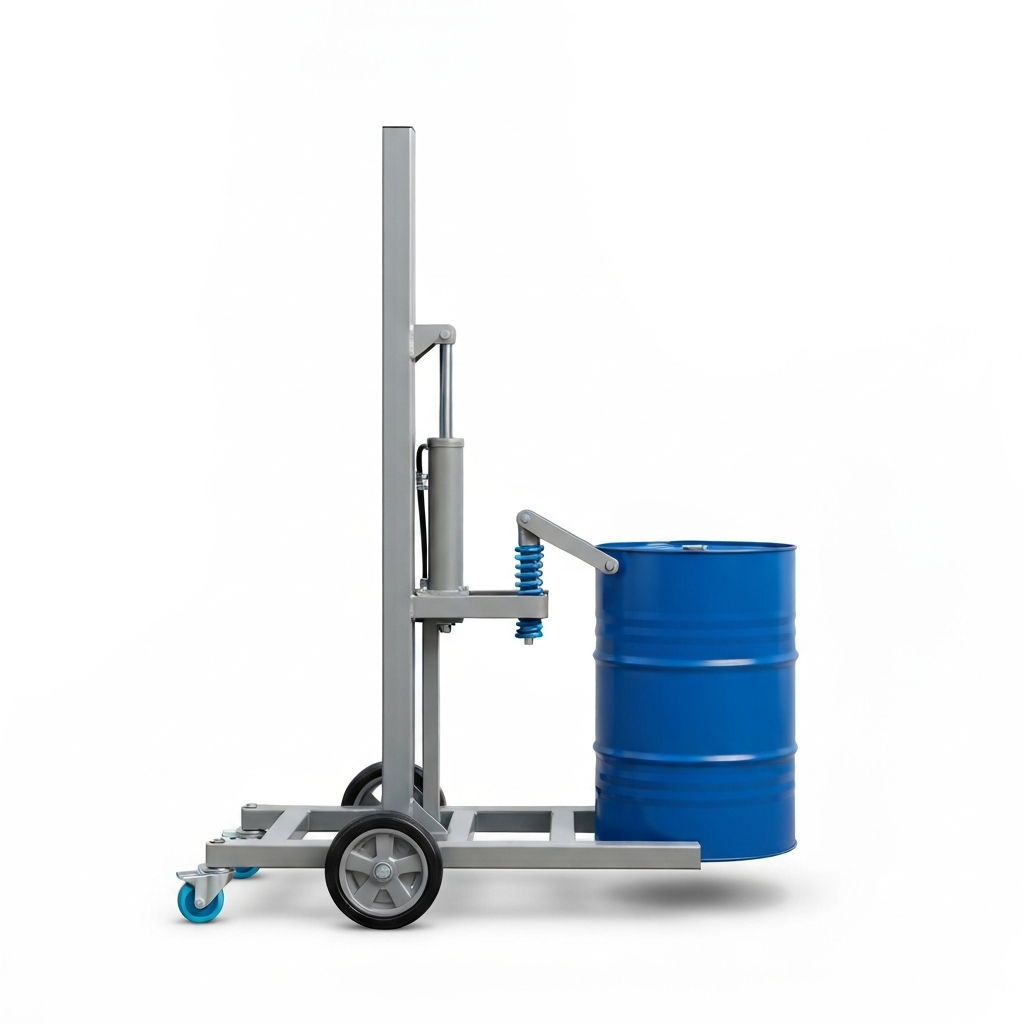

3/4 view
CE · 300 KG · SPRING-LOADED CLAMP
