The electric lift does the heavy work. You supply the travel. 1,000 to 2,000 kg capacity, lift heights from 1,600 to 3,500 mm, maintenance-free battery, CE certified — up to 48% below what the brand catalogs charge for the same spec.
3/4 view
CE · ELEC LIFT · MF BATTERY

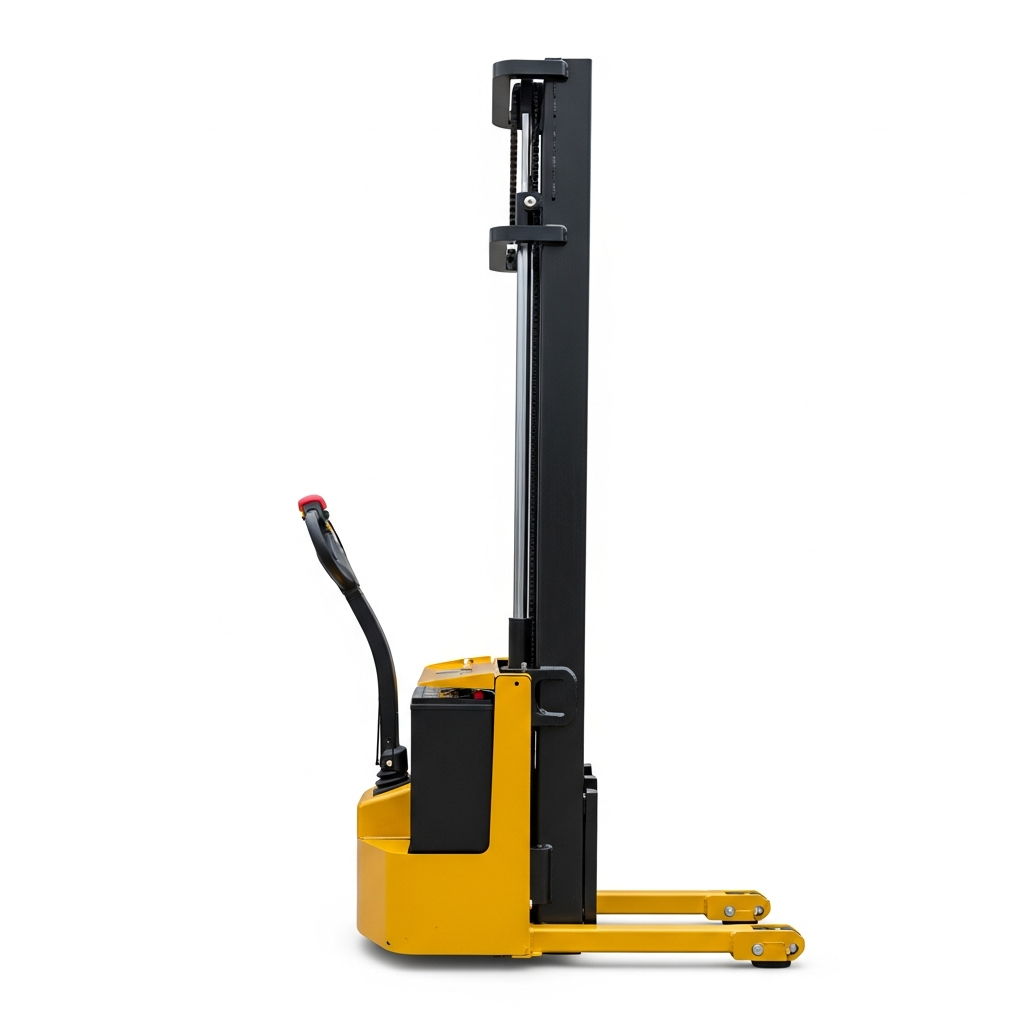

The JL-SES is a semi-electric stacker: the lift motor is electric, the travel is manual. You push it to where the load needs to go — which in most warehouse aisles is 10 to 30 metres at most — and the 1.6 kW or 2.2 kW electric motor does the lifting. This split means a lighter, cheaper machine than a full-electric walkie stacker, with far less arm fatigue than a purely manual pump stacker at serious loads.
Three capacity tiers: 1,000 kg (JL-SES 10), 1,500 kg (JL-SES 15), 2,000 kg (JL-SES 20). Lift height options vary by model — JL-SES 10 and JL-SES 15 are available in 1,600 / 2,500 / 3,000 / 3,500 mm; JL-SES 20 in 1,600 / 2,000 mm. Specify the lift height you need at order — the mast section determines it, not a retrofit. The JL-SES fork is 1,150 mm long with a fixed 550 mm width or adjustable 330–685 mm depending on variant.
The 120 Ah / 12V maintenance-free sealed lead-acid battery needs no water topping, no equalisation cycle, and no dedicated battery room. It lives in the stacker base. When it's discharged, you charge it — that's the entire maintenance requirement. A full shift of typical intermittent stacking use is within range; heavy continuous use will need a mid-day charge.
If your operators are moving loads over 50+ metres repeatedly across a shift, step up to the JL-EST full-electric walkie stacker — the drive motor earns its cost at that usage level. If your runs are short and your budget is tighter, the JL-SES is the right call: less mass, simpler drivetrain, lower price, same CE-certified lift mechanism.
No ambiguity — every dimension and rating is on the page.
| Specification | JL-SES 10 | JL-SES 15 | JL-SES 20 |
|---|---|---|---|
| Rated capacity | 1,000 kg | 1,500 kg | 2,000 kg |
| Available lift heights | 1,600 / 2,500 / 3,000 / 3,500 mm | 1,600 / 2,500 / 3,000 / 3,500 mm | 1,600 / 2,000 mm |
| Lift motor | 1.6 kW | 1.6 kW | 2.2 kW |
| Net weight (approx) | 326–400 kg | 380–450 kg | 420–475 kg |
| Shared across JL-SES 10 / 15 / 20 | |||
| Lowered fork height | 85 mm | ||
| Load centre | 600 mm | ||
| Fork length | 1,150 mm | ||
| Fork width (fixed or adj) | 550 mm fixed · 330–685 mm adjustable (specify at order) | ||
| Overall length | 1,807 mm | ||
| Overall width | 800 mm | ||
| Front wheels | Ø74 × 68 mm — PU | ||
| Steering wheels | Ø180 × 50 mm | ||
| Min steering radius | 1,450 mm | ||
| Min aisle width | ≥ 2,370 mm | ||
| Wheelbase | 1,170 mm | ||
| Battery | 120 Ah / 12V — maintenance-free sealed lead-acid | ||
| Travel | Manual — hand-propelled | ||
| Certification | CE | ||
| Origin | Manufactured in Jiangsu, China · QC'd & shipped from Toronto, Ontario | ||
Lift height specified at order — mast section is set at the factory. JL-SES 10 and JL-SES 15 available in 1,600 / 2,500 / 3,000 / 3,500 mm; JL-SES 20 available in 1,600 / 2,000 mm only. Fork width (fixed 550 mm or adjustable 330–685 mm) also specified at order. All specs verified against factory data sheet.
A semi-electric stacker is a deliberate compromise. Here's what it's good at — and what the full-electric is for.

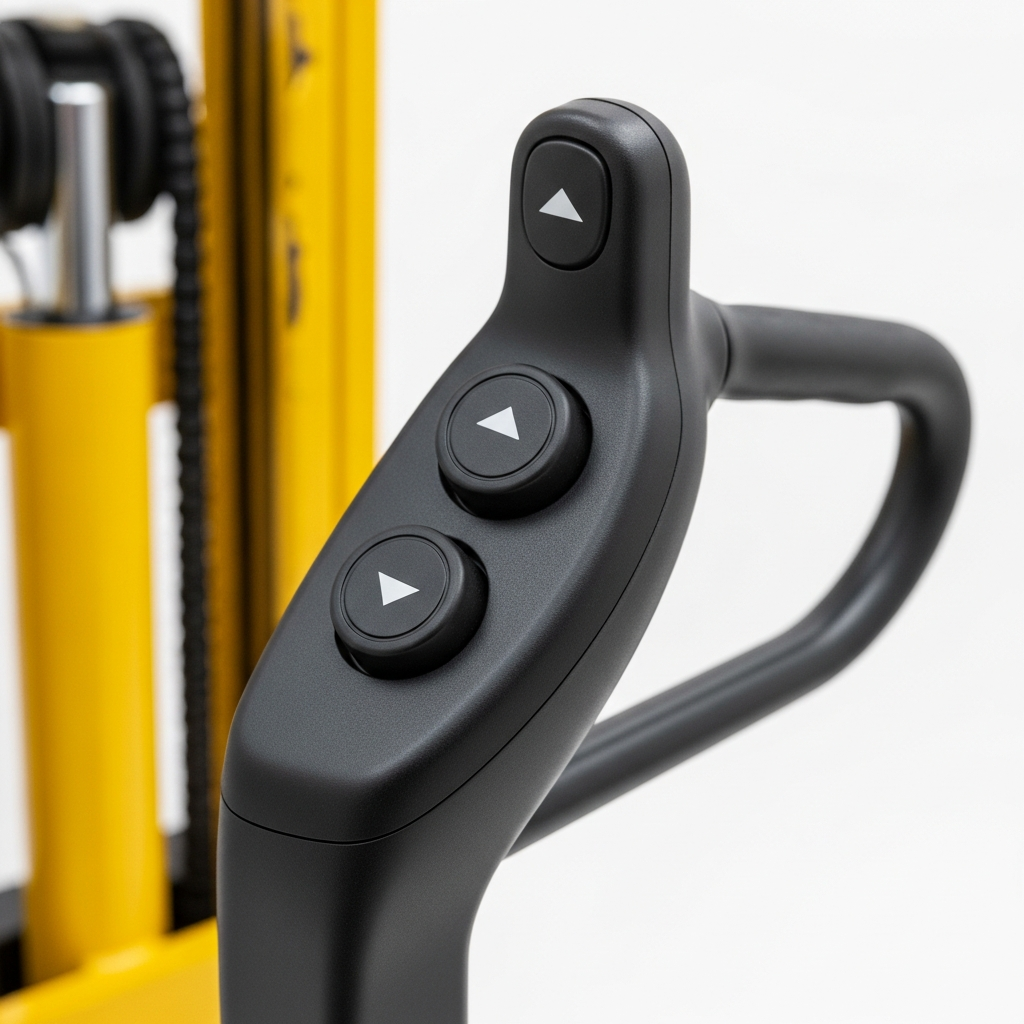

The tiller handle thumb control sends power to the lift motor. No pump handle cranking at 1,000+ kg. The electric motor lifts smoothly from 85 mm to the full height with a single input.
No water, no equalisation, no battery room. The sealed lead-acid pack lives in the base. Charge it on a standard outlet at end of shift. That's the entire battery maintenance routine.
JL-SES 10 and JL-SES 15 available in 1,600 / 2,500 / 3,000 / 3,500 mm — the 3,500 mm option reaches standard industrial racking second shelf without a reach truck. JL-SES 20 available in 1,600 / 2,000 mm. Specify at order — not a retrofit.
No drive motor, no traction battery, no electronic drive controller for travel. The JL-SES weighs 326–475 kg depending on variant — substantially less than a full-electric walkie stacker at the same capacity. Easier to manoeuvre in tight aisles.
The 330–685 mm adjustable fork variant handles different pallet and skid widths. One stacker for the Euro pallet, the North American GMA pallet, and the non-standard skid from your supplier — without switching equipment.
Manual travel means your operator walks with the load. For runs under 30–40 metres in a typical shift, this is fine. For heavy continuous traversal, step up to the JL-EST full-electric walkie stacker — we'll tell you that directly rather than let you buy the wrong machine.
Every JL-SES ships with the documentation a procurement team or safety officer actually asks for, packed in the crate with the unit.
The electric lift motor, the sealed battery and the mast profile are the same across every semi-electric stacker sold in North America. The premium you're paying at brand list price is the badge and the distribution chain.
| Model | Brand catalog list | Jesterlift | Savings |
|---|---|---|---|
| JL-SES 10 — 1,000 kg semi-electric stacker | $8,050 | $4,190 | −48% ($3,860) |
| JL-SES 15 — 1,500 kg semi-electric stacker | $9,800 | $5,090 | −48% ($4,710) |
| JL-SES 20 — 2,000 kg semi-electric stacker | $11,400 | $5,990 | −47% ($5,410) |
Prices in CAD · base model (1,600 mm lift height) · CE certified · PU wheels standard · QC pack included · FOB Toronto. Higher lift heights available at additional cost — request a quote. Brand catalog list = published CAD MSRP from major North American material handling brands at time of writing.
The lift motor is a commodity. The battery is a commodity. The mast steel is a commodity. We publish what the distributor chain doesn't want you to know: the engineering is the same and the price gap is margin.
No portal, no sales gate. Send your capacity, lift height and quantity — we'll come back with a published price, lead time and the QC pack contents, usually within one business day.
