Height and angle, independently controlled. 1,000 kg capacity, electric-hydraulic lift, tilt up to 90°, CE certified — 50% below brand catalog pricing for a unit that positions a load in two axes at once.

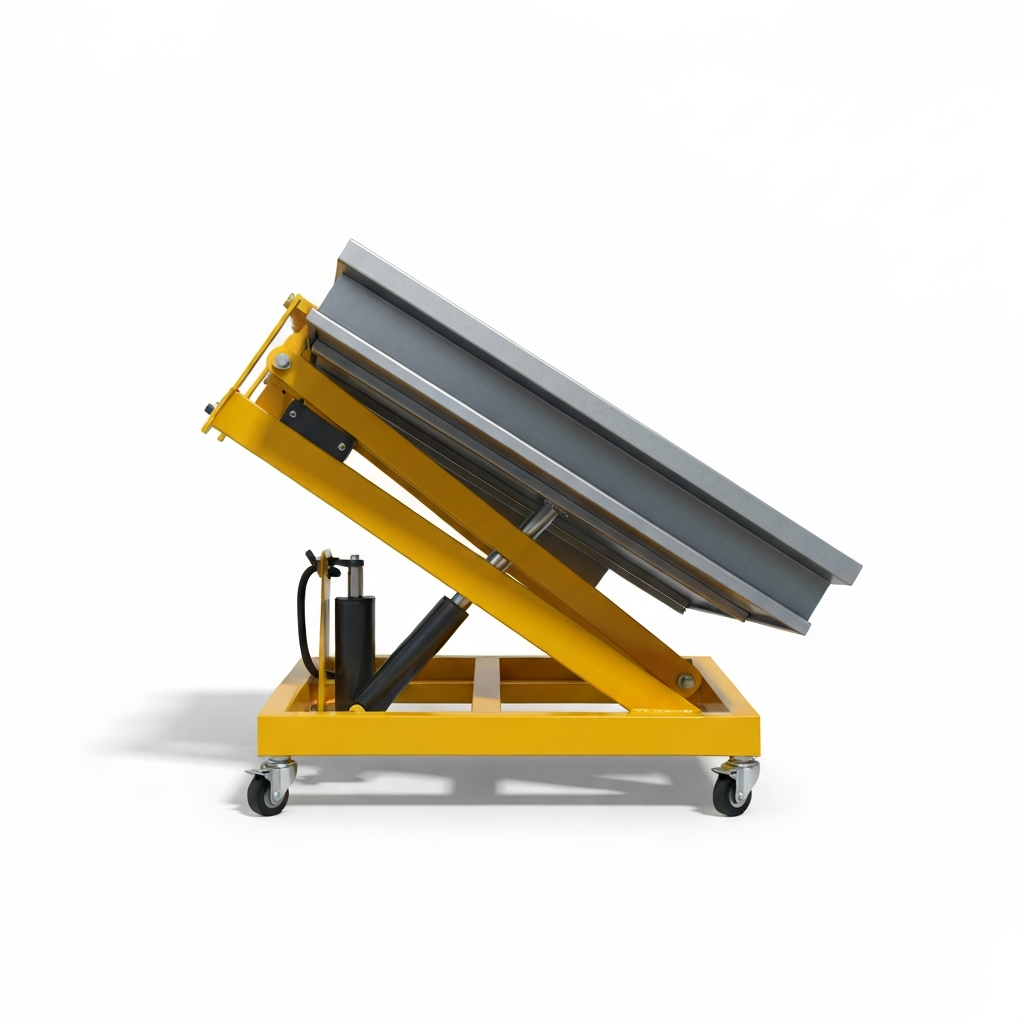

3/4 view
CE · 1,000KG · UP TO 90° TILT · INDEPENDENT CONTROL
The JL-TLT is a combined lift and tilt table for applications where height positioning alone isn't enough. Assembly work that requires a component at a specific angle. Pallet unloading where the last layers are inaccessible from above until the pallet is tilted forward. Die and mould work where a horizontal load needs to be presented at a vertical angle for mounting or inspection. Two-axis positioning in one unit.
Lift and tilt are independently controlled — you can raise the platform to any height, then tilt it, without the tilt angle affecting the lift height or vice versa. The tilt mechanism runs up to 90°. The lift mechanism is electric-hydraulic on the LT10E base: 0.8 kW / 12 V power, 285 mm vertical lift from the lowered fork position. A foot protector and parking brake are standard. Fork dimensions: 800 mm length × 560 mm overall width.
The JL-TLT is a light-duty single-axis tilt combined with a vertical lift — it is not a heavy industrial 4,000 kg pallet tilter. The 1,000 kg capacity is appropriate for sub-pallet loads, tooling, components, drums, and light assembly. If your application is a full loaded pallet at capacity, the JL-HLT series with an accessory tilter is the correct path. If your load is under 1,000 kg and needs both height and angle positioning, this is the unit.
All specs verified from the factory data sheet for the LT10E base.
| Specification | JL-TLT (single variant) |
|---|---|
| Rated capacity | 1,000 kg (2,205 lb) |
| Tilt angle | Up to 90° |
| Fork length | 800 mm |
| Overall fork width | 560 mm |
| Vertical lift height | 285 mm |
| Min fork height (lowered) | 85 mm |
| Overall width | 638 mm |
| Overall length | 1,410 mm |
| Overall height (lowered) | 750 mm |
| Overall height (raised) | 950 mm |
| Handle height | 1,138 mm |
| Net weight | 185 kg |
| Power | 0.8 kW / 12 V electric-hydraulic |
| Lift & tilt control | Independent — height and angle controlled separately |
| Safety | Parking brake · foot protectors |
| Certification | CE · EN1757-1 · EN1175 |
| Origin | Manufactured in China · QC'd & shipped from Toronto, Ontario |
Specs verified against the LT10E factory data sheet. Confirm fork width compatibility with your load at order.
A lift table and a tilt table working in sequence costs twice the floor space and twice the handling steps. The JL-TLT does both in one unit.
Height and angle are separate control axes — raise the load to working height, then tilt it to the angle you need, in either order, without one movement affecting the other.
The full 90° range covers: gentle 15° ergonomic tilt for assembly, 45° for pallet face access, 90° for vertical presentation of a horizontal load — all the same unit.
The 0.8 kW / 12 V electric drive handles the lift portion — no foot-pumping required. Vertical travel is 285 mm from the lowered position, enough for ergonomic height adjustment.
Certified to both the operator-pedestrian vehicle standard (EN1175) and the pallet truck safety standard (EN1757-1). Declaration of Conformity ships in the crate.
The forks lower to 85 mm — close enough to the ground to load from floor-level pallets and totes without a ramp or intermediate step.
Standard safety kit — not optional add-ons. The parking brake holds position during tilt operations. Foot protectors keep operators clear of the tilt arc.
Every JL-TLT ships with compliance documentation for both the mechanical and electrical systems.
Lift and tilt tables are specialty items with specialty margins. The mechanism isn't complicated — it's the specialty label that drives the price. Same factory, same independent controls, same 90° tilt range.
| Model | Brand catalog list | Jesterlift | Savings |
|---|---|---|---|
| JL-TLT 100 — 1,000 kg lift & tilt table (up to 90°) | $3,890 | $1,949 | −50% ($1,941) |
Prices in CAD · CE certified · EN1757-1 · EN1175 · QC pack included · FOB Toronto. Brand catalog list = published CAD MSRP from major North American material handling brands at time of writing.
Same factory. Same independent lift and tilt controls. Same CE certification. Published price, paperwork in the crate, ships in three to five days.
No portal, no sales gate. Tell us your capacity, required tilt angle and quantity. We'll reply within one business day.
