The workhorse of the loading dock and assembly floor. 500 to 1,000 kg capacity, foot-pedal hydraulic pump, stepless lowering, CE certified — 50% below what the brand catalogs charge for the same unit.
3/4 view
CE · EN1570 · FOOT PEDAL · SWIVEL CASTERS

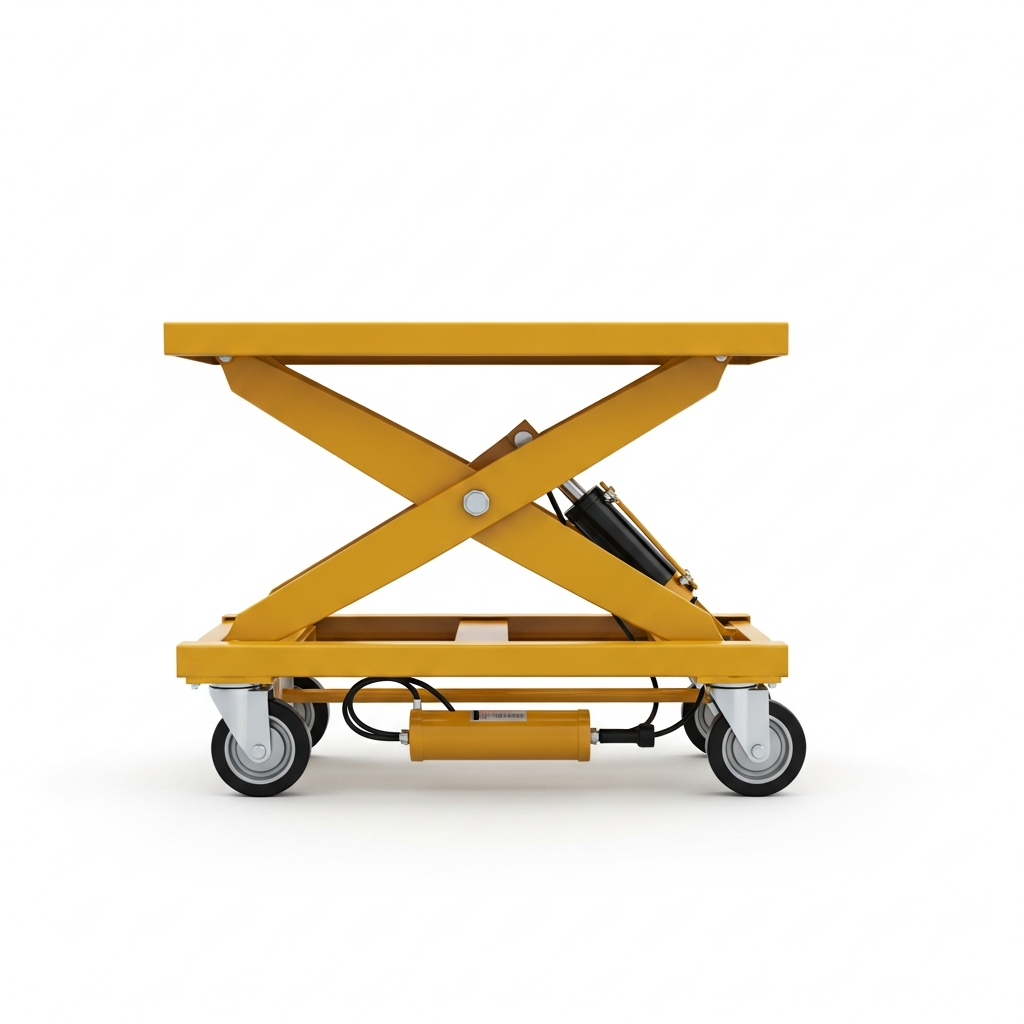

The JL-HLT is a foot-pedal hydraulic scissor lift table for the tasks that repeat: feeding a press, positioning a workpiece at ergonomic height, loading a conveyor, staging palletized goods at dock level. Three capacities — 500 kg, 750 kg, 1,000 kg — cover most manufacturing and distribution use cases from small part assembly to full pallet work.
The hydraulic unit is foot-operated: you pump up and use the lowering valve to descend at a controlled rate regardless of load weight. That stepless lowering control is what keeps the load from slamming down on a heavy piece. The table surface is welded steel, the frame is powder-coated safety yellow, and the unit rolls on four large-diameter swivel casters — two with locking brakes — so it positions exactly where you need it and stays there.

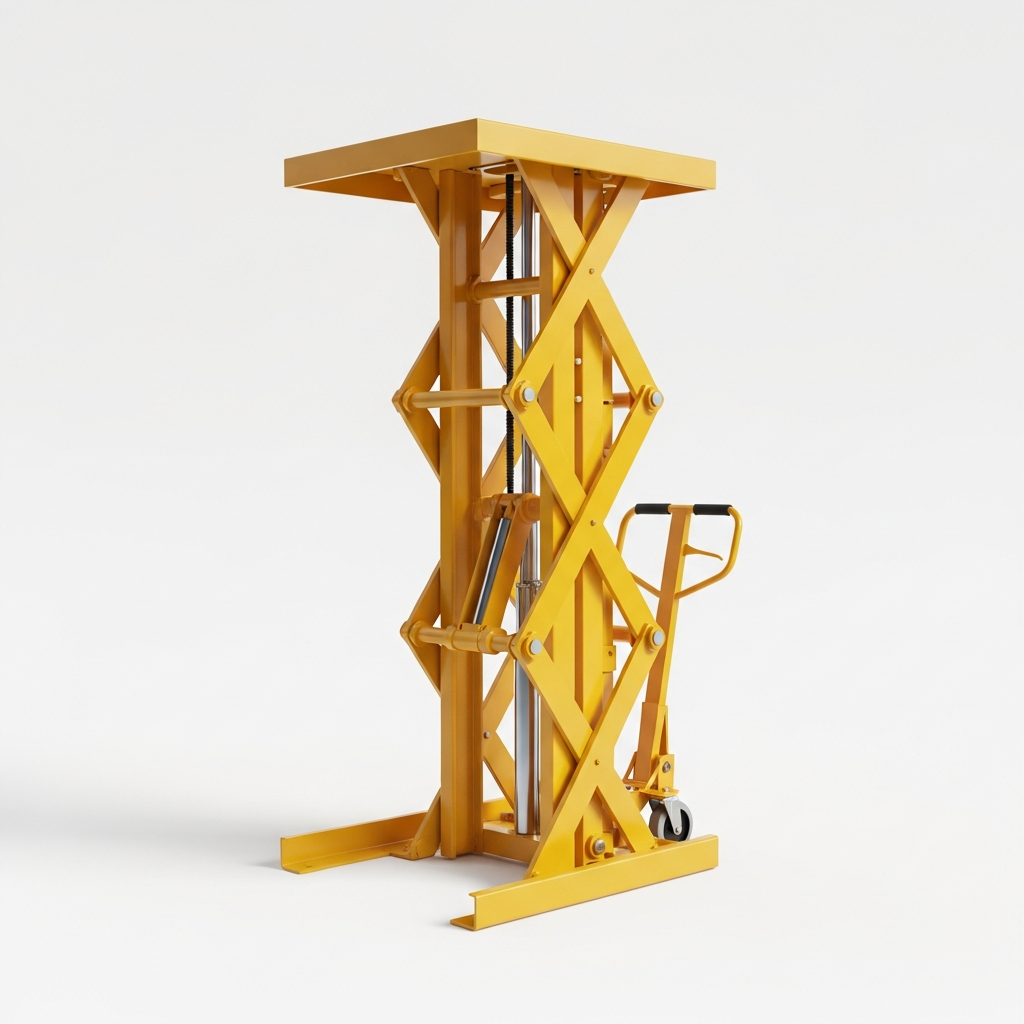

The BS-series single-scissor models (JL-HLT 50, 75, 100) lift from a lowered height of 435–445 mm to a max of 950–1,100 mm — enough for dock-level transfers and standing-height work positioning. If your application needs a higher working surface, the double-scissor BS-D variants go to 1,410–1,585 mm raised height. Ask at order if you need the D configuration; the price is the same platform at additional cost.
Every JL-HLT ships with a CE Declaration of Conformity, operator's manual, maintenance schedule, spare parts list, and a pre-shipment QC inspection sheet. Documentation rides in the crate with the table — no portal, no email chase.
All dimensions and ratings verified from the factory spec sheet shipped with the unit. If a spec isn't on this table, ask — we'll confirm from the source.
| Specification | JL-HLT 50 | JL-HLT 75 | JL-HLT 100 |
|---|---|---|---|
| Rated capacity | 500 kg | 750 kg | 1,000 kg |
| Platform size | 1,010 × 520 mm | 1,010 × 520 mm | 1,010 × 520 mm |
| Min height (lowered) | 435 mm | 442 mm | 445 mm |
| Max height (raised) | 1,100 mm | 1,000 mm | 950 mm |
| Foot pedal force | 55 N | 65 N | 85 N |
| Net weight | 118 kg | 120 kg | 137 kg |
| Shared across JL-HLT 50 / 75 / 100 | |||
| Overall length | 1,185–1,260 mm | ||
| Wheel diameter | φ150 mm | ||
| Handle height | 1,130 mm | ||
| Frame | Welded steel · powder-coated safety yellow | ||
| Lowering control | Stepless valve — speed independent of load weight | ||
| Casters | 4× swivel · 2 with locking brakes | ||
| Certification | CE · EN1570 design standard | ||
| Optional skirting | Available — specify at order | ||
| Origin | Manufactured in China · QC'd & shipped from Toronto, Ontario | ||
Double-scissor (D) variants available for max heights up to 1,585 mm — specify at order. All specs verified against factory data sheet.
Lift tables fail for predictable reasons: the hydraulic seal leaks, the lowering valve sticks, the casters seize. We specced those components for industrial shift use — not a demonstration floor.
A proportional control valve lets you descend at any speed you choose — loaded or empty. No sudden drops, no jerky descent on heavy pieces.
The scissor geometry and pin tolerances are designed to the EN1570 safety standard for lifting tables — not reverse-engineered from a competitor's cut sheet.
Two of the four casters have individual foot-operated locking brakes. Position the table, lock it, work without the unit drifting.
The frame is welded — not bolted — steel with a powder-coat finish that holds up on a warehouse floor. Safety yellow so it stays visible in busy aisles.
Hands-free lifting — both hands stay on the load or the part. The pump is sealed and protected from floor debris, which is where most hydraulic failures start.
Standard single-scissor models to 1,100 mm. Double-scissor D variants reach 1,585 mm for high-bench and conveyor-feed applications. Same platform width, extra travel.
Every JL-HLT ships with the documentation a safety officer or procurement team actually asks for — packed in the crate with the unit.
The hydraulic scissor lift tables in the brand catalogs come out of the same Chinese factories ours do. The premium covers the badge, the distributor margin, and the sales infrastructure — not the steel or the hydraulics.
| Model | Brand catalog list | Jesterlift | Savings |
|---|---|---|---|
| JL-HLT 50 — 500 kg hydraulic scissor lift table | $1,890 | $949 | −50% ($941) |
| JL-HLT 75 — 750 kg hydraulic scissor lift table | $2,390 | $1,199 | −50% ($1,191) |
| JL-HLT 100 — 1,000 kg hydraulic scissor lift table | $2,990 | $1,499 | −50% ($1,491) |
Prices in CAD · CE certified · EN1570 design · foot pedal operated · QC pack included · FOB Toronto. Brand catalog list = published CAD MSRP from major North American material handling brands at time of writing.
Same factory. Same EN1570 scissor mechanism. Same stepless hydraulic valve. We publish the price the rest of the industry guards behind a "request a quote" button — because that button has never once protected the buyer.
No portal, no sales gate. Send your capacity, platform size and quantity — we'll come back with a published price, lead time and QC pack contents, usually within one business day.
