The JL-BC is a walk-behind compact electric mover. Its job is simple: you walk up to a loaded cart, dolly or small trailer, engage the coupling, and the machine's electric drivetrain does the pushing. The operator walks alongside at 3–6 km/h — a brisk walking pace — while the machine absorbs the load. No rider seat. No cargo deck. No steering wheel. Just traction.
Power comes from a 24 V / 400 W motor controlled by a Curtis 24 V / 70 A controller — the same controller family found in thousands of material handling machines worldwide. The 12 V / 22 Ah × 2 lead-acid battery pack is charged via the onboard 24 V / 2 A charger; plug in at the end of a shift and it's ready for the next. Maximum moving weight is 1,500 kg on a flat surface.
When the compact mover makes sense
Carts loaded with parts, bins of components, maintenance trolleys, dollies piled with product — anything that rolls and weighs too much to push comfortably by hand. The JL-BC clears the gap between manual effort and powered equipment: lighter and cheaper than a tow tractor, far less fatiguing than manual pushing, and operable by any warehouse associate with a short familiarisation. No forklift licence required, no special certification class.
Compact enough to go anywhere
At 1,385 × 665 mm and 76 kg, the JL-BC fits through standard facility doorways and stores in a corner when not in use. The 1,020 mm overall height keeps it low enough to work in shelved aisles. It is a practical tool, not a capital purchase — sized to earn its keep every shift.

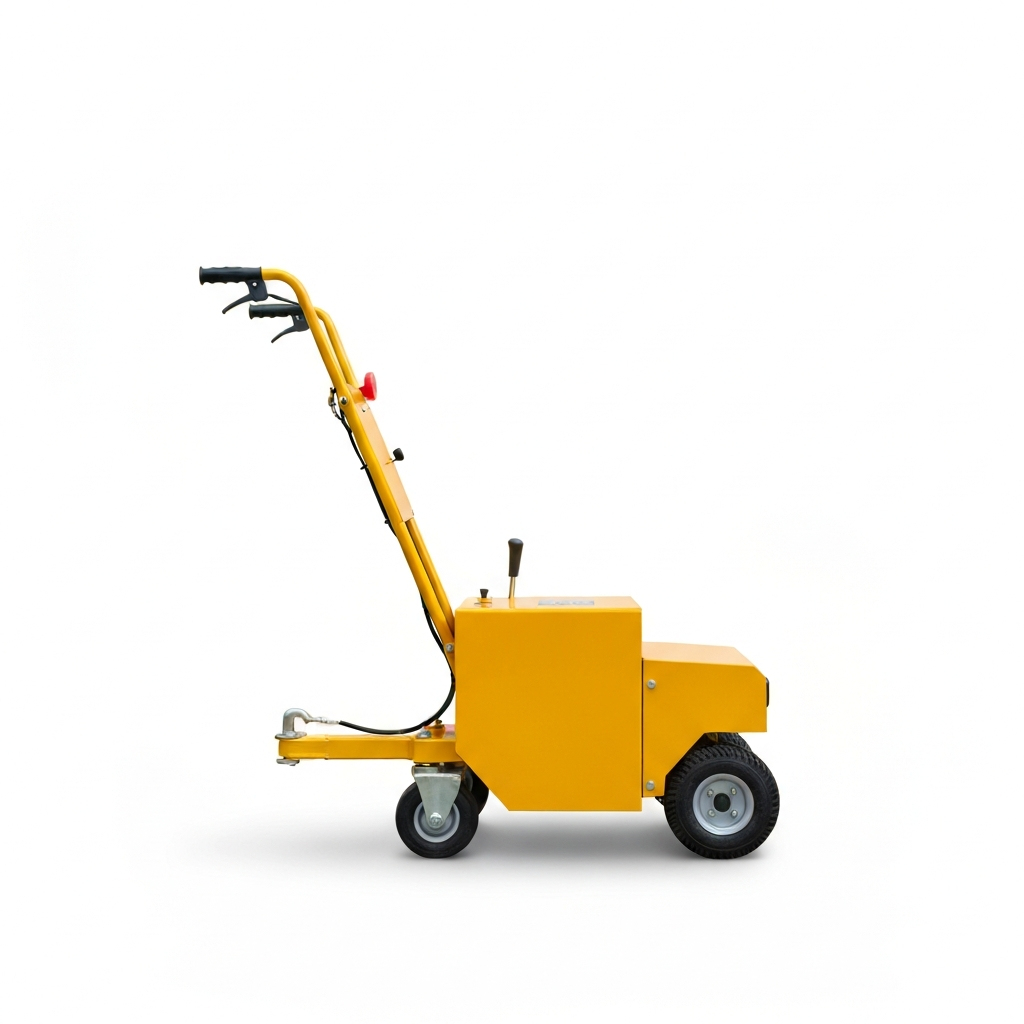

3/4 view
WALK-BEHIND · CURTIS CONTROLLER · 1,500 KG
