Same walkie electric pallet truck category. Lithium battery instead of lead-acid. 120 kg instead of 237 kg. Fast charge, no acid, no watering schedule. Half the price of the North American branded equivalent.

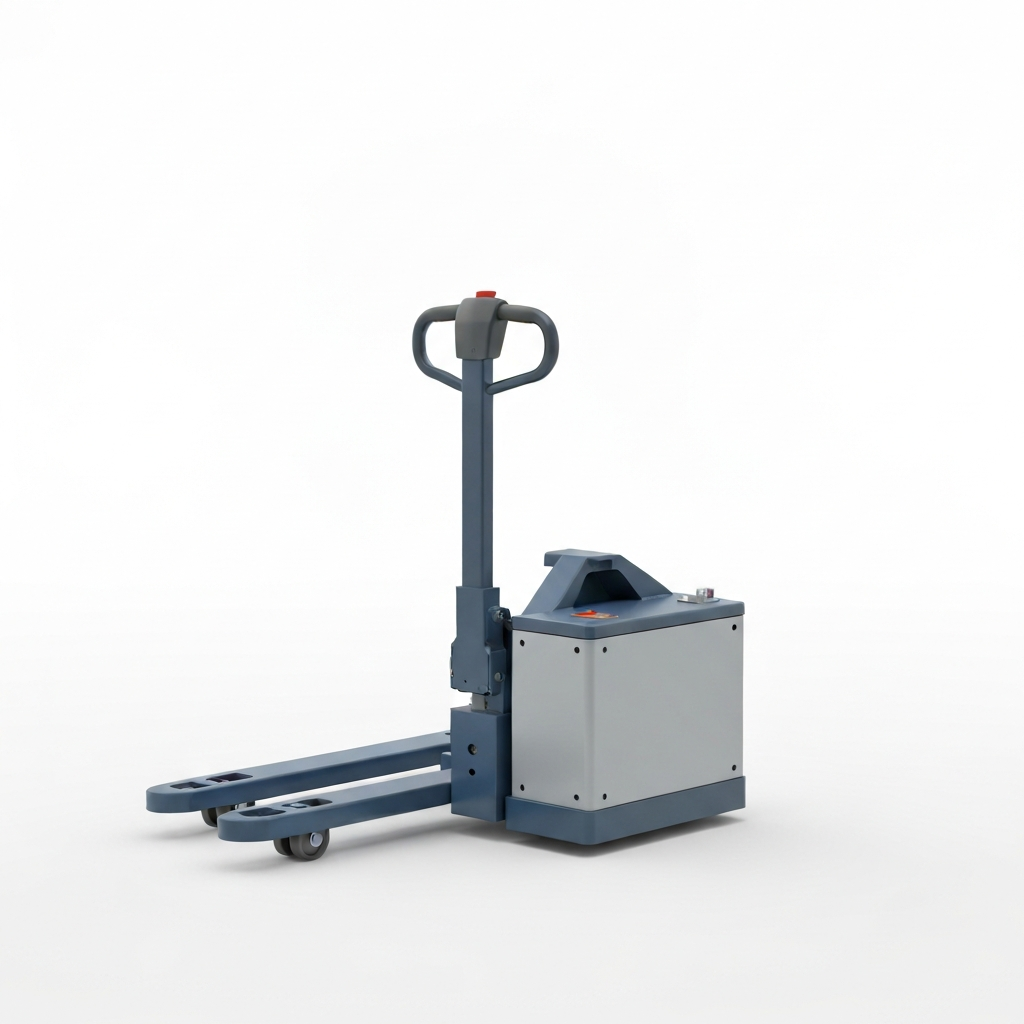

3/4 view
CE · LI-ION · 1,500 KG · 120 KG NET
The JL-LIP is a 1,500 kg walkie electric pallet truck built around a lithium-ion battery instead of a lead-acid pack. The operational spec is similar to the standard walkie — same fork geometry, same pedestrian operation, same electromagnetic brake — but the battery is a 5 kg lithium cell rather than a 32 kg lead-acid block. Service weight drops from 237 kg (walkie + lead-acid) to 120 kg. The truck is lighter, faster to manoeuvre, easier to push by hand in tight corners, and simpler to maintain.
Travel speed is 4.0 km/h laden, 4.5 km/h unladen. Gradeability 6% laden. The turning radius is 1,360 mm — tighter than either the standard walkie (1,460 mm) or the rider (1,540 mm). Fork width 560 mm standard, 685 mm wide option available.
The supplier spec explicitly notes: one battery for occasional usage, two batteries for heavy-duty shift operations. The JL-LIP ships with one battery. If your operation runs multiple shifts without charging downtime, order the second battery at the same time — it's the lithium equivalent of keeping a spare lead-acid on the charger, without the battery room requirement.
Drive motor is 0.75 kW vs 0.65 kW in the standard walkie — marginally more power at significantly less weight. The truck accelerates more responsively under load. No watering schedule. No acid spill risk. No corrosion from off-gassing. The trade-off: the Li-ion pack is 20 Ah vs 70 Ah for lead-acid, which is why two packs cover a heavy-duty shift where lead-acid runs on one. For normal single-shift light-to-medium warehouse use, one pack is sufficient.
All figures from the factory spec sheet. If a number isn't here, we couldn't verify it and we won't publish a guess.
| Specification | JL-LIP 15 (NL-F4) |
|---|---|
| Rated capacity | 1,500 kg |
| Overall length | 1,550 mm |
| Overall width | 590 / 695 mm |
| Fork width | 560 / 685 mm |
| Fork length | 1,150 mm |
| Load center distance | 600 mm |
| Min fork height (lowered) | 88 mm |
| Lift height | 105 mm |
| Ground clearance | 25 mm |
| Turning radius | 1,360 mm |
| Travel speed (laden / unladen) | 4.0 / 4.5 km/h |
| Max gradeability (laden / unladen) | 6% / 16% |
| Drive motor | 0.75 kW — DC |
| Lift motor | 0.5 kW |
| Battery | 24V / 20 Ah — lithium-ion |
| Battery weight | 5 kg |
| Energy consumption | 0.18 kWh/h |
| Front tyres | Ø210 × 70 mm — polyurethane |
| Rear tyres | Ø80 × 60 mm — polyurethane |
| Brake type | Electromagnetic |
| Service weight | 120 kg |
| Certification | CE |
| Origin | Manufactured in Jiangsu, China · QC'd & shipped from Toronto, Ontario |
560 mm and 685 mm fork width options available at the same price. One battery ships standard; second battery available on order for heavy-duty multi-shift operations. Lift height is 105 mm (vs 200 mm on the standard walkie) — suitable for standard pallet operations, not high-lift applications.
Lithium isn't automatically better than lead-acid — it depends on the application. Here's where the JL-LIP wins, and where it doesn't.
Half the weight of a lead-acid walkie at full battery. Operators feel the difference immediately on ramps, through doorways, and anywhere the truck needs manual nudging.
Lead-acid batteries require distilled water top-ups, produce hydrogen gas during charging, and corrode nearby steel over time. None of that applies here. Charge, operate, repeat.
Tightest in the electric pallet truck range — 100 mm tighter than the standard walkie. Gets into spaces the heavier lead-acid truck can't reach cleanly.
Very low energy draw for the workload. The 20 Ah pack covers a normal single-shift light-to-medium operation. A second pack is available for heavy multi-shift use.
Lithium accepts partial charges without memory effect. Plug in during lunch, plug in at break — each charge extends the shift without requiring a full drain-recharge cycle.
Same dead-man brake as the lead-acid walkie — the truck stops the moment you release the drive control. No coasting, no drift, no operator-dependent stopping distance.
Every JL-LIP ships with the documentation a procurement team or safety officer actually asks for, packed in the crate with the unit.
North American branded Li-ion walkie pallet trucks (Big Joe LPT class) list at approximately $6,120 CAD. The JL-LIP is $3,090. Same 1,500 kg Li-ion walkie category. The badge accounts for the rest.
| Model | North American Li-ion walkie list | Jesterlift | Savings |
|---|---|---|---|
| JL-LIP 15 — 1,500 kg lithium-ion electric pallet truck | $6,120 | $3,090 | −50% ($3,030) |
Prices in CAD · CE certified · 24V/20Ah Li-ion battery · electromagnetic brake · QC pack included · FOB Toronto. Comparison list price = typical North American branded Li-ion walkie pallet truck (Big Joe LPT class) at time of writing.
Same Jiangsu factory. Same CE certification. Same Li-ion walkie pallet truck moving the same pallets. The $3,000 you keep in your equipment budget is real money — not a rounding error on someone else's margin.
No portal, no sales gate. Send your fork width preference, shift pattern (single vs multi-shift) and quantity — we'll come back with price, lead time and QC pack within one business day.
