Ninety-two millimetres off the floor — low enough to slip under a standard pallet. 200 to 400 kg capacity, foot-pedal hydraulic, CE certified — 50% below brand catalog pricing for a unit that starts where most can't.
3/4 view
CE · 92mm MIN · EN1570 · FITS UNDER PALLET

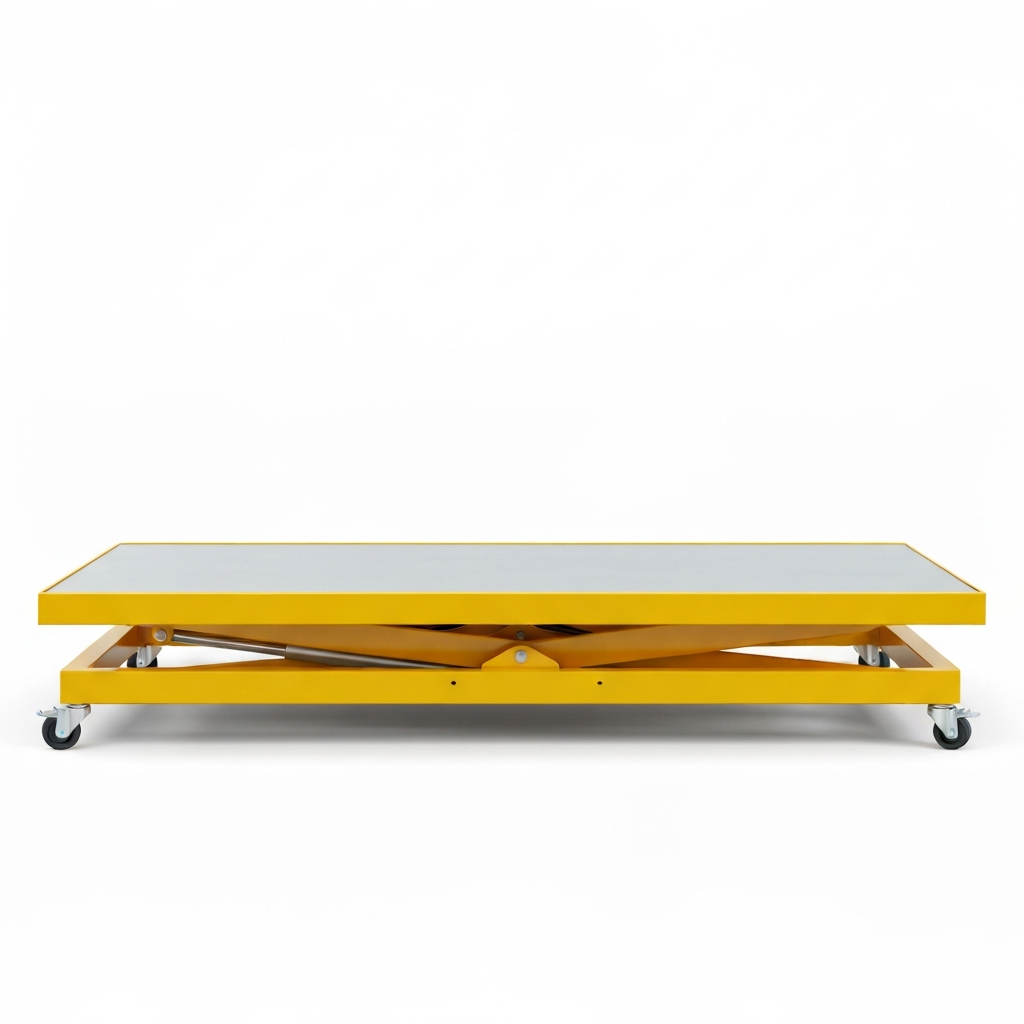

A standard scissor lift table has a lowered height of 400–480 mm — useful for positioning loads at ergonomic height, but useless for loading directly from the floor. The JL-LLT bottoms out at 92 mm (3.6 inches). Standard pallet boards sit 90–100 mm off the floor. That means the JL-LLT can slide under a loaded pallet sitting on the floor and lift it — no fork, no hand truck, no intermediate step.

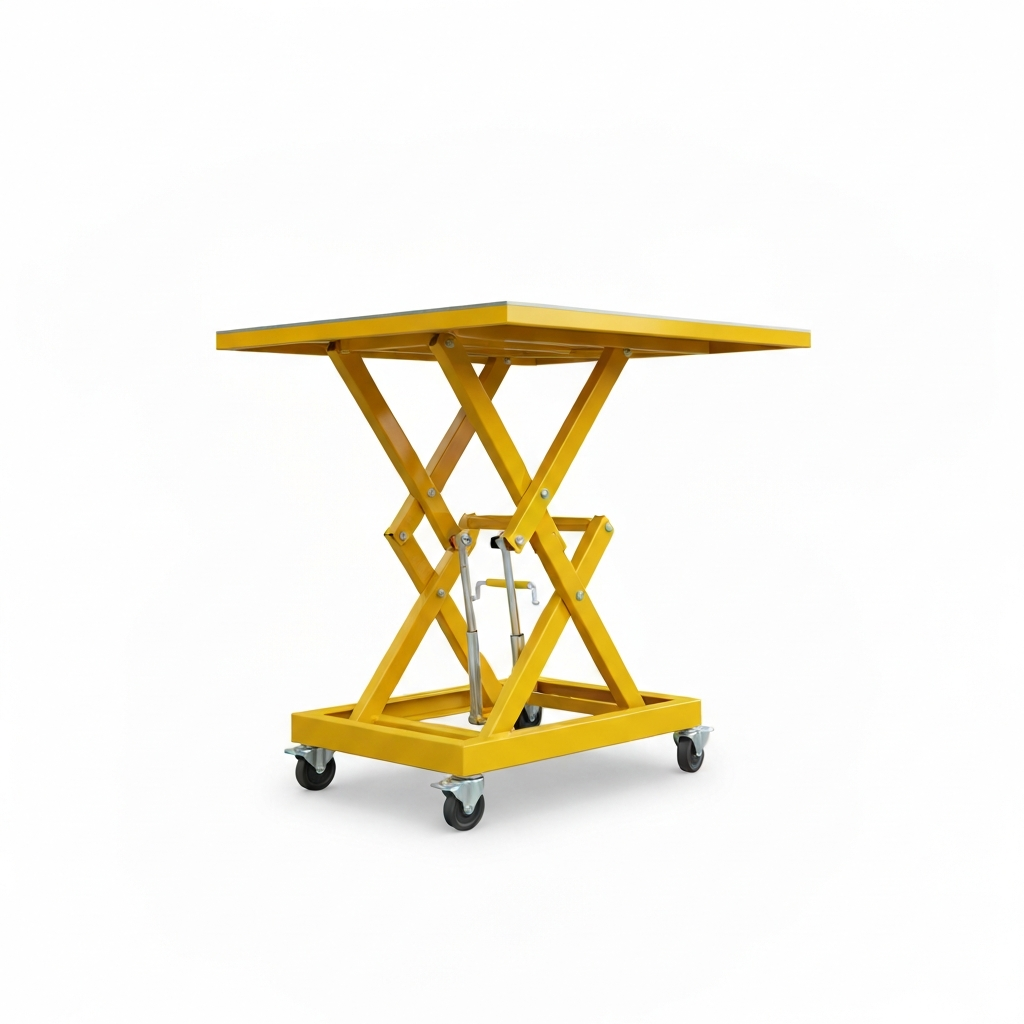

Two capacities: 200 kg (JL-LLT 200) with an 830 × 500 mm platform, and 400 kg (JL-LLT 400) with a 900 × 600 mm platform. Both lift to 600 mm raised height — counter height, conveyor height, or sorting-table height. Foot-pedal hydraulic pump with stepless lowering. Front load roller at the base to ease entry under pallets.
The low-profile lift table fits anywhere a standard-height table can't: loading small parts from floor-level totes, positioning drums and barrels that weren't placed on a rack, feeding a machine from a ground-level pallet, ergonomic positioning at a packing bench where the product starts at floor level. If your constraint is the height at the entry point — not the weight — this is the table.
All specs verified from the factory data sheet. The 92 mm number is confirmed — not a marketing claim.
| Specification | JL-LLT 200 | JL-LLT 400 |
|---|---|---|
| Rated capacity | 200 kg | 400 kg |
| Platform size | 830 × 500 mm | 900 × 600 mm |
| Steering wheel | φ100 mm | φ125 mm |
| Overall dimensions | 1,260 × 520 mm | 1,320 × 620 mm |
| Foot pedal strokes (unloaded) | 14 | 21 |
| Foot pedal strokes (loaded) | 45 | 68 |
| Net weight | 74 kg | 108 kg |
| Shared across JL-LLT 200 / 400 | ||
| Minimum height (lowered) | 92 mm | |
| Maximum height (raised) | 600 mm | |
| Handle height | 875–905 mm | |
| Front load roller | φ75 mm — eases entry under pallets | |
| Frame | Welded steel · powder-coated safety yellow | |
| Lowering control | Stepless valve · speed independent of load weight | |
| Certification | CE · EN1570 design standard · ASME safety standard | |
| Origin | Manufactured in China · QC'd & shipped from Toronto, Ontario | |
92 mm minimum height confirmed against factory data sheet. All specs verified.
Ultra-low lift tables have one job: get under loads that standard tables can't reach. Every feature here serves that mission.
Standard pallet boards sit 90–100 mm off the floor. At 92 mm lowered height, the JL-LLT slides under a loaded floor pallet and lifts it without an intermediate step or a fork truck.
A φ75 mm roller at the front base helps the table glide under a pallet cleanly — the same lead-in logic as a pallet truck fork tip, applied to a lift table.
Meets both CE (EN1570) and ASME safety standards — useful for facilities that need compliance documentation for both North American and European-standard safety reviews.
The controlled-descent valve lets you lower at any speed regardless of load weight. No sudden drops, no impact on the floor or the material.
Both hands stay on the load while you pump. The sealed hydraulic pump is protected from floor dust and debris — the difference between a year's service and a year's repairs.
The JL-LLT is light enough and compact enough to reposition by hand. 74–108 kg unit weight, small steering wheel, and a handle height that keeps it manageable in tight spaces.
Every JL-LLT ships with the compliance documentation your safety officer needs — in the crate, not in a portal.
Low-profile lift tables are a specialty item, so the distributors charge accordingly. They don't need to. Same Chinese factory, same 92 mm platform, same ASME/EN1570 compliance.
| Model | Brand catalog list | Jesterlift | Savings |
|---|---|---|---|
| JL-LLT 200 — 200 kg low-profile scissor lift table | $1,790 | $899 | −50% ($891) |
| JL-LLT 400 — 400 kg low-profile scissor lift table | $2,290 | $1,149 | −50% ($1,141) |
Prices in CAD · CE certified · EN1570 + ASME · 92 mm min height · QC pack included · FOB Toronto. Brand catalog list = published CAD MSRP from major North American material handling brands at time of writing.
Same factory. Same 92 mm lowered height. Same EN1570 + ASME certification. Published price, paperwork in the crate, ships in three to five days.
No portal, no sales gate. Send your capacity and quantity — we'll come back with a published price, lead time and QC pack contents within one business day.
